General Features:

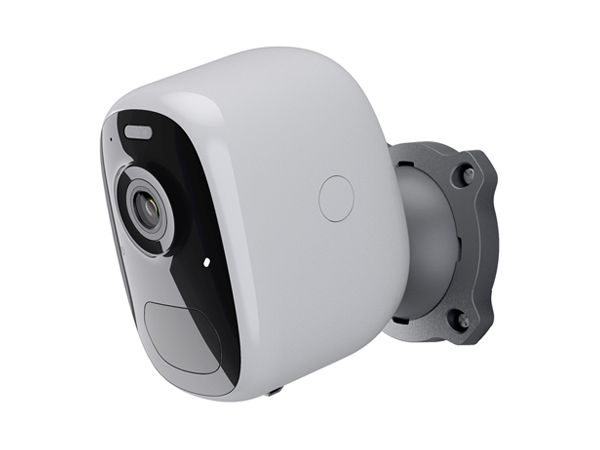

Smart Wire-free Battery camera
Two-way voice intercom
2-megapixel high resolution
IP65 dustproof and waterproof
Dual-source lighting night vision
Standby time up to 6 months
2.4G Wi-Fi supported
Cloud storage and micro SD card
Supporting human contour detection, activity zone, intelligent push and pet snapshot
Bracket with 1/4 universal screw and magnetic bracket supported
with RED, FCC, ROHS certificate








Model CG1

Specifications

Master Processor

SOC

HI3518E V300: A dominant frequency of 900 MHz

DDR

512M

Image Sensor

Sensor

 1/3" color CMOS Sensor

Lens

M12, f: 2.8mm, F2.0, 2-megapixel

Visual Angle

H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees

Minimum Illumination

0.01 Lux

Audio

Input/Output

Two-way voice intercom available (built-in microphone and speaker)

Audio Compressing Method

AAC

Video

Video Compressing Method

 H.265

Lighting Frequency

50Hz, 60Hz

Image Frame Rate

15 fps

Maximum Image Resolution

1920*1080P

Light Source for Night Vision

Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m

Network

Wireless Network

2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna

Protocols Supported

TCP/IP, UDP/IP, DHCP, RTMP, MUTP

IP Address Supported

Dynamic IP address supported

AI

Intelligent Features

Human contour detection, activity zone,intelligent push,  pet snapshot

Alarm Methods

Alarm Notification

Alarm push by mobile APPwhite light  flashing and alarm sound

Wake-up

Wake-up Method

PIR body induction wake-up, and remote positive wake-up

Video Recording

Recording Method

Alarm triggered recording, and manual recording

Video Storage

Cloud storage, local MICRO SD card, and mobile phone memory

Indicator Lamps

LED Indicator

RGB tri-color lamp indicating the status of power/network signal/functionality

Battery

Capacity

5200mAh/6700mAh

Removability

Unremovable

Battery Life

6 months (provided that 20 10s videos are recorded per day)

Standby Time

1 year

Charging Voltage

DV 5V+-5%/1.5A

Charge Time

Within 8 hours

Protection Method

IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures

Power Consumption

Standby Power Consumption

2.4mW (3.8V 0.63mA)

Power Consumption of Daytime Operation

1W (3.8V 264mA)

Power Consumption of Operation at Night

2.23W (3.8V 588mA)

Interfaces

Power Supply

1 MICRO USB interface

SD Card

 1 MICRO SD card (up to 128GB supported)

Keys

1 reset key and 1 on/off key

Installation Method

Installation Method

Magnet and 1/4 universal screw holes

Environment

Dustproof and Waterproof

IP65

Operating Environment

 -10°~45°C / 0%~80% (no condensation)

Storage Environment

 -20°C~60° / 0%~90% (no condensation)

Specifications

Size (LxWxH)

84mm*62mm*92.5mm (with bracket excluded)

Net Weight of Bare Machine

Approx. 338g

Finished Weight

Approx. 570g

Material + Process

ABS + PC

Color

White with high gloss

Certifications

Certificate

RoHSCEFCCWEEEMSDSUN38.3
