GN-ATS60-ST200





GN-ATS60-ST200


General Features:

HD 4 in 1 AHD Camera
Hybrid 4in1: AHD/TVI/CVI/CVBS
Resolution: 2MP / 1080P
Lens: 2.8mm
IR Range: 25~30M
Outdoor IP66 Waterproof






Model No:

GN-ATS60-ST200

Image Sensor+DSP

1/2.9" CMOS SONY IMX307+NVP2441H

Resolution

2MP (1920*1080)

TV System

PAL / NTSC

Video Output Mode

Hybrid 4in1: AHD/TVI/CVI, CVBS 960H

Lens

2.8mm (3.6mm & 6mm are optional)

Day & Night

IR-CUT Auto

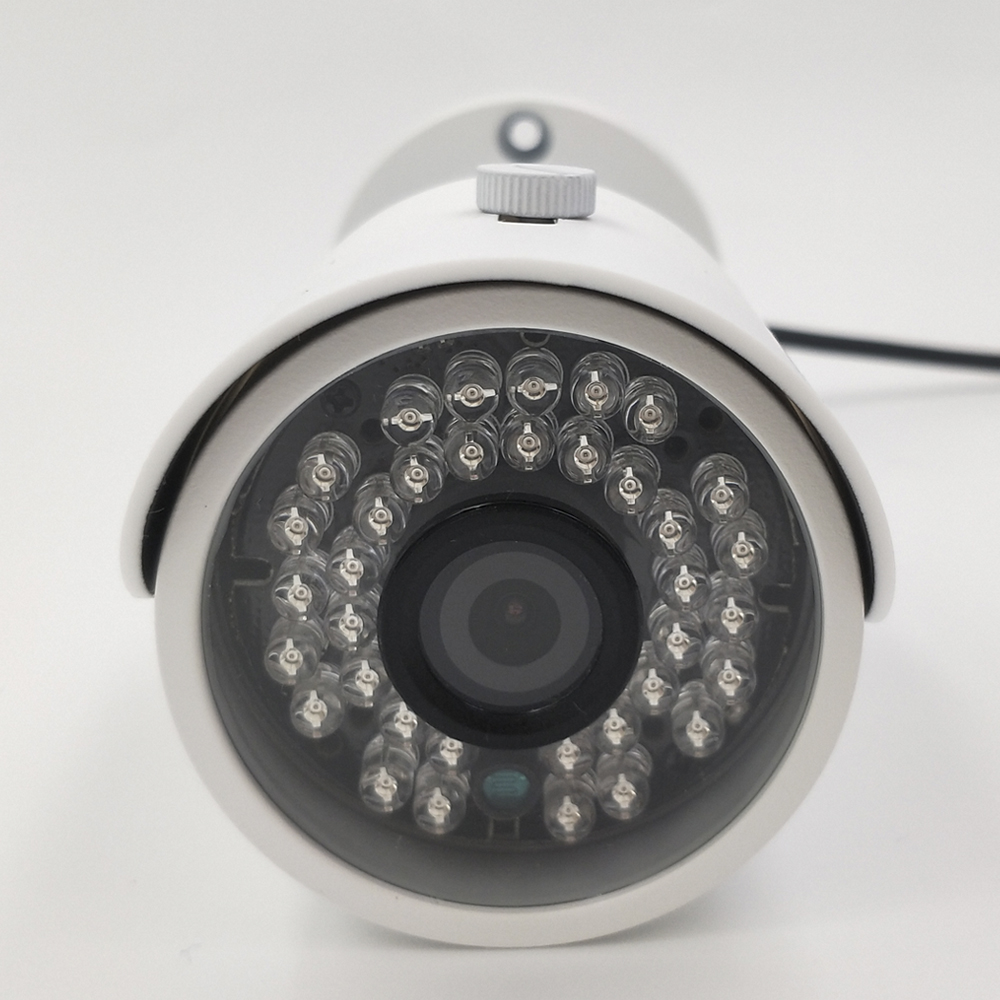

Infrared LED

SMD IR LED*18pcs  (Φ5 IR-LED*36pcs is optional)

Infrared Range

25~30M

Low illumination

0.01Lux @F1.6,  0 Lux with IR LED on

OSD Menu

Support Multi Language OSD Menu

Other Functions

D-WDR, 3D-NR, Auto Gain Control, Auto White Balance

Waterproof Level

Al-Alloy Metal Camera Housing, IP66 Waterproof

Working Temperature

 -10℃~50, RH95% Max

Power Source

DC12V±10%,  400mA

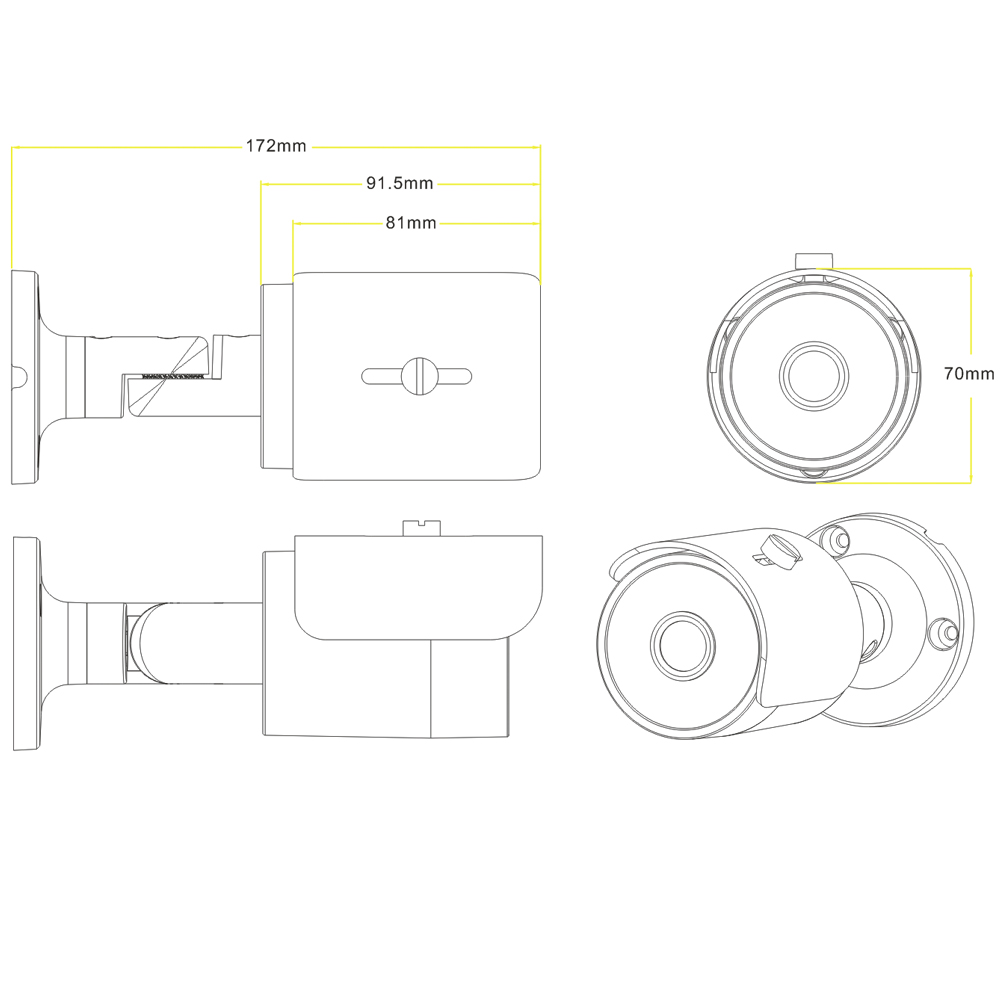

Camera Size

172 x 65 x 65mm

Gross Weight

0.4Kg
